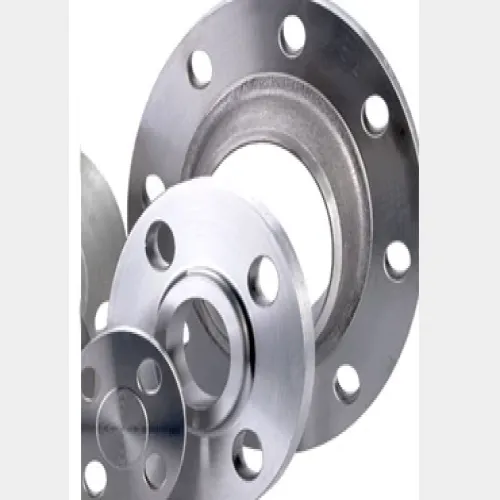

Loose Flange or call it joint flange are widely used, supplied, manufactured and distributed in many countries like UAE, Saudi Arabia, Kuwait, Qatar, Egypt, Turkey, Oman, Africa, Malaysia & many countries in USA & Europe. These flanges are exactly used on a piping fitted with the lapped pipe or with lap joint stub ends and has initial cost of two items being one third higher than that of slip on flanges. These flanges are normally used in systems requiring frequent dismantling for inspection and also needs cleaning. We give it in fully customised form for various requirement if sizes, standards and shapes
The advantages of lap joint are it can easily have freedom to swivel around the pipe facilities and up of opposing flange bolt holes. These are manufactured using a superior grade of steel like stainless steel 202, 304, 304L, 310, 310S, 316, 316L, 317L,321 and 347. We also supply and maintain a huge stock of other grades of alloy steel flange that is A182 F1 / F5 / F9 / F11 / F22 / F91 FLANGES. Nickel Alloy 201 Flange, S32750 Duplex Steel UNS S31803 Flanges, Socketweld Flanges, Duplex Steel UNS S32205 Flanges, Carbon Steel Flanges, Copper Nickel Flange, Inconel 600, Incolloy 800 Flanges, Hastelloy and Monel 400 Flanges. Loose flange types include LJ forged Flange, Class 150 Lap Joints, Class 150 Slip-On Dimension, Class 300 Lap Joints, Class 300 Slip-On Dimension and Class 600 Lap Joints. It comes in ANSI,JIS,DIN,BS4504,SABS1123,EN1092-1, UNI,AS2129,GOST-12820 and falls in the pressure category of ANSI class 150, 300, 600, 1500, 2500, DIN PN6, PN10, PN16, PN25, PN40, PN64, PN100, PN160. The size differing is from ½ -78 inch (DN2000). Loose Flanges highly used in Oil Field, Water System, Offshore, Shipbuilding, Natural Gas, Electric Power and Pipe Projects
Naming countries like UAE, Saudi Arabia, Kuwait, Qatar, Egypt, Turkey, Oman, Africa, Malaysia & many countries in USA & Europe are the main market where our products are exported. Being certified & award winner for supplier & Exporter of industrial stainless Steel piping materials we have the excellent pipes and tubes solutions with best pricing. Following legal standards we are an ISO 9001, 14001, OHSAS 18001 with PED 97/23/EC approved Supplier & Exporter of Industrial raw materials. Pipe Elbow, Pipe Tee, Pipe Cross, Lap Joints, Butt-Weld Pipes and many more are also available with other types of carbon, nickel, alloy and stainless steel flanges and fittings available.
All of our high quality products are tested on different parameter for excellent product value in the market. Our business connections are very beneficial to more than 600 reputed organisations in more than 30+ countries from last 25 years with 95% of customer retention.
Loose Flanges Specification
| Product Type | ASME 16.5 Loose Flanges |
| Size | ½” (15 NB) to 48″ (1200NB) |
| Stainless Steel Loose Flanges | ASTM A 182, A 240 F 304, 304L, 304H, 316, 316L, 316Ti, 310, 310S, 321, 321H, 317, 347, 347H,904L |
| Carbon Steel Loose Flanges | ASTM / ASME A/SA 105 ASTM / ASME A 350 , ASTM A 181 LF 2 / A516 Gr.70 A36, A694 F42, F46, F52, F60, F65, F70 |
| Alloy Steel Loose Flanges | ASTM / ASME A/SA 182 & A 387 F1, F5, F9, F11, F12, F22, F91 |
| Duplex Steel Loose Flanges | ASTM / ASME A/SA 182 F 44, F 45, F51, F 53, F 55, F 60, F 61 |
| Pressure Ratings | Class 150, Class 300, Class 400, Class 600, Class 900, Class1500, Class 2500 | PN6, PN10, PN16, PN25, PN40, PN64 etc. |
| Specialize | As per drawing |
| Standard | ANSI B16.5, ANSI B16.47, ANSI B16.36, ANSI B16.48, BS 4504, EN1092, UNI 2277/2278, DIN |
| Connection Type / Flange Face Type | Ring Type Joint, Lap-Joint Face, Raised Face, Loose Face, Large Male-Female, Small Male-Female, Large Tongue & Groove, Small Tongue & Groove |
ASME/ ANSI B16.5 Loose Flanges Manufacturing Materials :
| Dimensions | Base Material | Pressure Rating |
|---|---|---|
| ASME B16.5 | ASTM A182 (Forgings) ASTM A240 (Plate) | 150#. 300#. 400#. 600#. 900#. 1500#. 2500#. |
| API 605 | ASTM A182 (Forgings) ASTM A240 (Plate) | 150#. 300#. 400#. 600#. 900#. 1500#. 2500#. |
| ASME B16.47series A & B | ASTM A182 (Forgings) ASTM A240 (Plate) | 150#. 300#. 400#. 600#. 900#. 1500#. 2500#. |
| EN1092-1 | ASTM A182 (Forgings) | PN2.5. PN6. PN10. PN16. PN25. PN40. PN63. PN100. PN160. PN250. PN320. PN400. |
| BS4504 | BS970 (Bar)ASTM A240 (Plate) ASTM A182 (Forgings) | PN2.5. PN6. PN10. PN16. PN25. PN40. PN63. PN100. PN160. |
| BS10 | BS970 (Bar)ASTM A240 (Plate) ASTM A182 (Forgings) |
Typical Stainless Steel 18/8 Grade Designations:
|
ASTM |
BS |
DIN |
EURONORM |
|---|---|---|---|
|
304 |
304S15 |
X5 Cr Ni 18 10 |
1.4301 |
|
304L |
304S11 |
X2 Cr Ni 18 9 |
1.4307 |
|
316 |
316S31 |
X5 Cr Ni Mo 17 12 2 |
1.4401 |
|
316L |
316S11 |
X2 Cr Ni Mo 17 13 2 |
1.4404 |
|
321 |
321S31 |
X6 Cr Ni 18 10 |
1.4541 |
|
316Ti |
320S31 |
X6 Cr Ni Mo Ti 17 12 2 |
1.4571 |
|
SMO |
254SMO |
X1 Cr Ni Mo Cu N 20 18 7 |
1.4547 |
ANSI B16.5 Loose Flanges Dimensions & Weight Chart:
ANSI B16.5 Loose Flanges – Class 150 Lbs
| Drilling | ||||||||
|---|---|---|---|---|---|---|---|---|
| Nominal Bore Loose Flanges | Dia.(D) | Thick.(E) | Dia.(B) | Dia.(A) | Height(H) | Nbr | Holes | Dia.(C) |
|
1/2″ |
90 |
11.2 |
30 |
22.9 |
16 |
4 |
15.87 |
60.3 |
|
3/4″ |
100 |
12.7 |
38 |
28.2 |
16 |
4 |
15.87 |
69.9 |
|
1″ |
110 |
14.3 |
49 |
34.9 |
17 |
4 |
15.87 |
79.4 |
|
1 1/4″ |
115 |
15.9 |
59 |
43.7 |
21 |
4 |
15.87 |
88.9 |
|
1 1/2″ |
125 |
17.5 |
65 |
50.0 |
22 |
4 |
15.87 |
98.4 |
|
2″ |
150 |
20.7 |
78 |
62.5 |
25 |
4 |
19.05 |
120.7 |
|
2 1/2″ |
180 |
22.3 |
90 |
75.4 |
29 |
4 |
19.05 |
139.7 |
|
3″ |
190 |
23.9 |
108 |
91.4 |
30 |
4 |
19.05 |
152.4 |
|
3 1/2″ |
215 |
23.9 |
122 |
104.1 |
32 |
8 |
19.05 |
177.8 |
|
4″ |
230 |
23.9 |
135 |
116.8 |
33 |
8 |
19.05 |
190.5 |
|
5″ |
255 |
23.9 |
164 |
144.4 |
36 |
8 |
22.22 |
215.9 |
|
6″ |
280 |
25.4 |
192 |
171.4 |
40 |
8 |
22.22 |
241.3 |
|
8″ |
345 |
28.6 |
246 |
222.2 |
44 |
8 |
22.22 |
298.5 |
|
10″ |
405 |
30.2 |
305 |
277.4 |
49 |
12 |
25.40 |
362.0 |
|
12″ |
485 |
31.8 |
365 |
328.2 |
56 |
12 |
25.40 |
431.8 |
|
14″ |
535 |
35.0 |
400 |
360.2 |
79 |
12 |
28.57 |
476.3 |
|
16″ |
595 |
36.6 |
457 |
411.2 |
87 |
16 |
28.57 |
539.8 |
|
18″ |
635 |
39.7 |
505 |
462.3 |
97 |
16 |
31.75 |
577.9 |
|
20″ |
700 |
42.9 |
559 |
514.4 |
103 |
20 |
31.75 |
635.0 |
|
24″ |
815 |
47.7 |
663 |
616.0 |
111 |
20 |
34.92 |
749.3 |
The dimensions are in millimeters
ANSI B16.5 Loose Flanges – Class 300 Lbs
| Drilling | ||||||||
|---|---|---|---|---|---|---|---|---|
| Nominal Bore Loose Flanges | Dia.(D) | Thick.(E) | Dia.(B) | Dia.(A) | Height(H) | Nbr | Holes | Dia.(C) |
|
1/2″ |
95 |
14.3 |
38 |
22.9 |
22 |
4 |
15.87 |
66.7 |
|
3/4″ |
115 |
15.9 |
48 |
28.2 |
25 |
4 |
19.05 |
82.6 |
|
1″ |
125 |
17.5 |
54 |
34.9 |
27 |
4 |
19.05 |
88.9 |
|
1 1/4″ |
135 |
19.1 |
64 |
43.7 |
27 |
4 |
19.05 |
98.4 |
|
1 1/2″ |
155 |
20.7 |
70 |
50.0 |
30 |
4 |
22.22 |
114.3 |
|
2″ |
165 |
22.3 |
84 |
62.5 |
33 |
8 |
19.05 |
127.0 |
|
2 1/2″ |
190 |
25.4 |
100 |
75.4 |
38 |
8 |
22.22 |
149.2 |
|
3″ |
210 |
28.6 |
117 |
91.4 |
43 |
8 |
22.22 |
168.3 |
|
3 1/2″ |
230 |
30.2 |
133 |
104.1 |
44 |
8 |
22.22 |
184.2 |
|
4″ |
255 |
31.8 |
146 |
116.8 |
48 |
8 |
22.22 |
200.0 |
|
5″ |
280 |
35.0 |
178 |
144.4 |
51 |
8 |
22.22 |
235.0 |
|
6″ |
320 |
36.6 |
206 |
171.4 |
52 |
12 |
22.22 |
269.9 |
|
8″ |
380 |
41.3 |
260 |
222.2 |
62 |
12 |
25.40 |
330.2 |
|
10″ |
445 |
47.7 |
321 |
277.4 |
95 |
16 |
28.57 |
387.4 |
|
12″ |
520 |
50.8 |
375 |
328.2 |
102 |
16 |
31.75 |
450.8 |
|
14″ |
585 |
54.0 |
425 |
360.2 |
111 |
20 |
31.75 |
514.4 |
|
16″ |
650 |
57.2 |
483 |
411.2 |
121 |
20 |
34.29 |
571.5 |
|
18″ |
710 |
60.4 |
533 |
462.3 |
130 |
24 |
34.29 |
628.6 |
|
20″ |
775 |
63.5 |
587 |
514.4 |
140 |
24 |
34.29 |
685.8 |
|
24″ |
915 |
69.9 |
702 |
616.0 |
152 |
24 |
41.27 |
812.8 |
The dimensions are in millimeters
ANSI B16.5 Loose Flanges – Class 600 Lbs
| Drilling | ||||||||
|---|---|---|---|---|---|---|---|---|
| Nominal Bore Loose Flanges | Dia.(D) | Thick.(E) | Dia.(B) | Dia.(A) | Height(H) | Nbr | Holes | Dia.(C) |
|
1/2″ |
95 |
14.3 |
38 |
23.6 |
22 |
4 |
15.87 |
66.7 |
|
3/4″ |
115 |
15.9 |
48 |
29.0 |
25 |
4 |
19.05 |
82.6 |
|
1″ |
125 |
17.5 |
54 |
35.8 |
27 |
4 |
19.05 |
88.9 |
|
1 1/4″ |
135 |
20.7 |
64 |
44.4 |
29 |
4 |
19.05 |
98.4 |
|
1 1/2″ |
155 |
22.3 |
70 |
50.6 |
32 |
4 |
22.22 |
114.3 |
|
2″ |
165 |
25.4 |
84 |
63.5 |
37 |
8 |
19.05 |
127.0 |
|
2 1/2″ |
190 |
28.6 |
100 |
76.2 |
41 |
8 |
22.22 |
149.2 |
|
3″ |
210 |
31.8 |
117 |
92.2 |
46 |
8 |
22.22 |
168.3 |
|
3 1/2″ |
230 |
35.0 |
133 |
104.9 |
49 |
8 |
25.40 |
184.2 |
|
4″ |
275 |
38.1 |
152 |
117.6 |
54 |
8 |
25.40 |
215.9 |
|
5″ |
330 |
44.5 |
189 |
144.4 |
60 |
8 |
28.57 |
266.7 |
|
6″ |
355 |
47.7 |
222 |
171.4 |
67 |
12 |
28.57 |
292.1 |
|
8″ |
420 |
55.6 |
273 |
222.2 |
76 |
12 |
31.75 |
349.2 |
|
10″ |
510 |
63.5 |
343 |
276.2 |
111 |
16 |
34.92 |
431.8 |
|
12″ |
560 |
66.7 |
400 |
328.6 |
117 |
20 |
34.92 |
489.0 |
|
14″ |
605 |
69.9 |
432 |
360.4 |
127 |
20 |
38.10 |
527.0 |
|
16″ |
685 |
76.2 |
495 |
411.2 |
140 |
20 |
41.27 |
603.2 |
|
18″ |
745 |
82.6 |
546 |
462.0 |
152 |
20 |
44.45 |
6654.0 |
|
20″ |
815 |
88.9 |
610 |
512.8 |
165 |
24 |
44.45 |
723.9 |
|
24″ |
940 |
101.6 |
718 |
614.4 |
184 |
24 |
50.80 |
838.2 |
